Bronze Back PTFE Composite Bushing Sintered

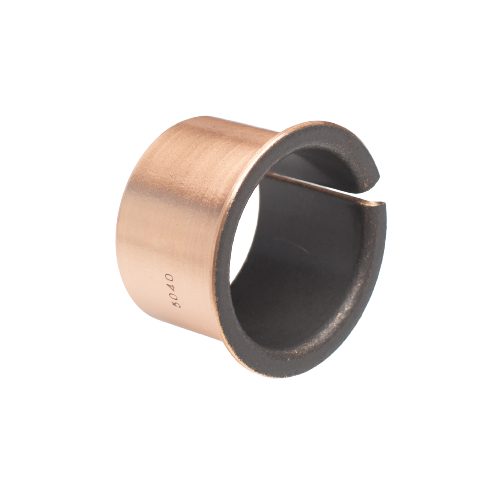

PVB011 Bronze Back PTFE Lined Self-Lubricating Composite Plain Bushing

PVB011 PTFE lined self-lubricating DU-B bronze bearing is made of bronze back with sintered bronze powder and PTFE layer. This type of sliding bearing is also called DU-B Bushing, PAP P11 composite plain bearing,bronze back coated self-lubricating bushing,oil free bronze bushes,SF-1B oiless bearing,plain dry sliding bronze bearings.

1.PTFE with Pb 0.01~0.03mm

2.Porous bronze 0.2~0.3mm

3.Bronze backing 0.7~2.3mm

• Good wear and friction performance over a wide range of load, speed and temperature conditions without lubrication.
• Also can perform well with lubrication.
• Bronze backing provides improved corrosion resistance compared with PVB010 self lubricating steel back bushing.

Standard Size Table

PVB011 Cylindrical DU-B Bushing.pdf PVB011 Flange DU-B Bushing.pdf PVB011 DU-B Thrust Washer.pdf

PVB011 Bronze based DU bushing is widely used in steel metallurgy industry, cement grouting pumps and scrow conveyers of machine, marine and offshore equipment, dyeing machinery and so on.

• Housing Ø: H7

• Bushing inner-Ø after mounting: H9

• Shaft tolerance: f7 bis h8

• Housing: Mounting bevel min. 1.5 mm x 15-45°

• Shaft: Mounting bevel 5 mm x 15°, edges rounded

• Shaft Material: Steel, hardened or untempered, surface roughness ≤ Rz 2-3

• The application of an adequate force fitting mandrel is advisable. Grease lubrication of the outer surface may be necessary when mounting.

• Stick-in

• Adhesive should not contact the sliding surface
